מפצל HDMI בעל כניסת HDMI אחת ושתי יציאות HDMI להפצת אות וידאו לשני מסכים במקביל.
תומך ברזולוציה עד 4K@30Hz ובתכני 3D, כולל תמיכה ב-EDID אוטומטי ושמירה על איכות אות יציבה ללא השהיה.
מתאים לשימוש במערכות תצוגה, אבטחה, הדרכה והעברת מידע. המוצר בצבע שחור.

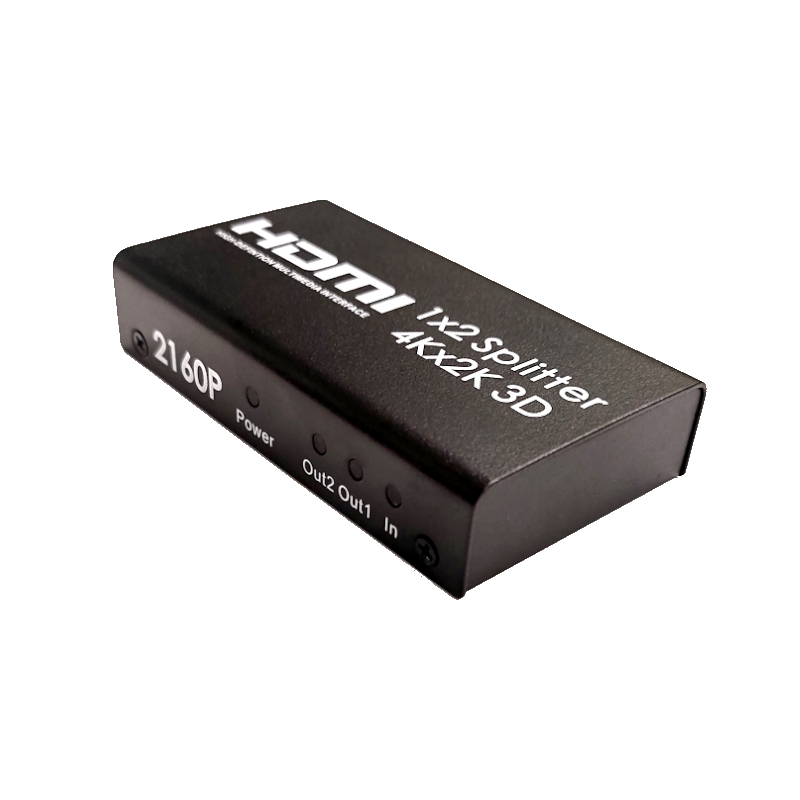

Gold Touch 2Ports HDMI 4K@30Hz Splitter
Overview:
This is an ultra high definition HDMI splitter supporting 3D and 4K@30Hz resolution.
The ultra HD signal can be easily allocated to multiple monitors that support Ultra HD signals.
The front and rear end of this product can connect to splitter, matrix and extender etc. And the picture
effect have no degradation and with good stability. When playing HD video without pause, delay and
trailing as well as perfectly supports 3D to make you enjoy three-dimensional picture.
It is widely used for video advertising, monitoring, information release, security system, multimedia
teaching system, bank, metro, computer room and long distance transmission management etc.
Support the highest signal format: 4K@30Hz , support 3D, backward compatible with 1080P.
Specifications:
- HDMI signal bandwidth: 340MHz / 3.4Gbps
- HDMI version 1.4, HDCP 1.4 compliant
- Support EDID automatic identification
- Support Blu-ray BLU-ray DVD24 / 50 / 60fs / HD-DVD / XVYCC
- Audio format DTS-HD, Dolby-trueHD, LPCM7.1, DTS, DOLBY-AC3,DSD, HD (HBR)
- There is a signal connection indicator, and the corresponding channel has a signal output
that will automatically light up
- Color: Black
| Parameter name |
Detailed description |
| Video |
protocol supported |
HDCP 1.4 |
| Pixel bandwidth |
340MHz，full digital |
| Interface bandwidth |
total bandwidth 10Gbps |
| Maximum support resolution |
4K@30Hz |
| Interface |
HDMI-A |
| Impedance |
100Ω |
| Support |
EDID |
support |
| Audio format |
DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / DOLBY-AC3 / DSD / HD (HBR) |
| HDMI input distance |
24AWG(15m) |
| HDMI output distance |
24AWG (10m) |
| Others |
Power supply |
power supply adapters：DC 5V/1A |
| Maximum power consumption |
3.8W |
| Working temperature |
-5℃ ~ +70℃ |
| Working humidity |
5% ~ 90% |
