מפצל HDMI בעל כניסת HDMI אחת ושמונה יציאות HDMI להפצת אות וידאו למספר מסכים במקביל.
תומך ברזולוציית 4K@30Hz ובתכני Full HD עם תמיכה ב-3D ושמירה על עומק צבע מתקדם.
המפצל מאפשר העברת אות יציבה ללא ירידה באיכות וללא השהיה, ומתאים לשימוש במערכות תצוגה,
פרסום, אבטחה והדרכה. ניתן לשלב עם מערכות HDMI נוספות כגון מטריצה ומרחיבים נוספים.

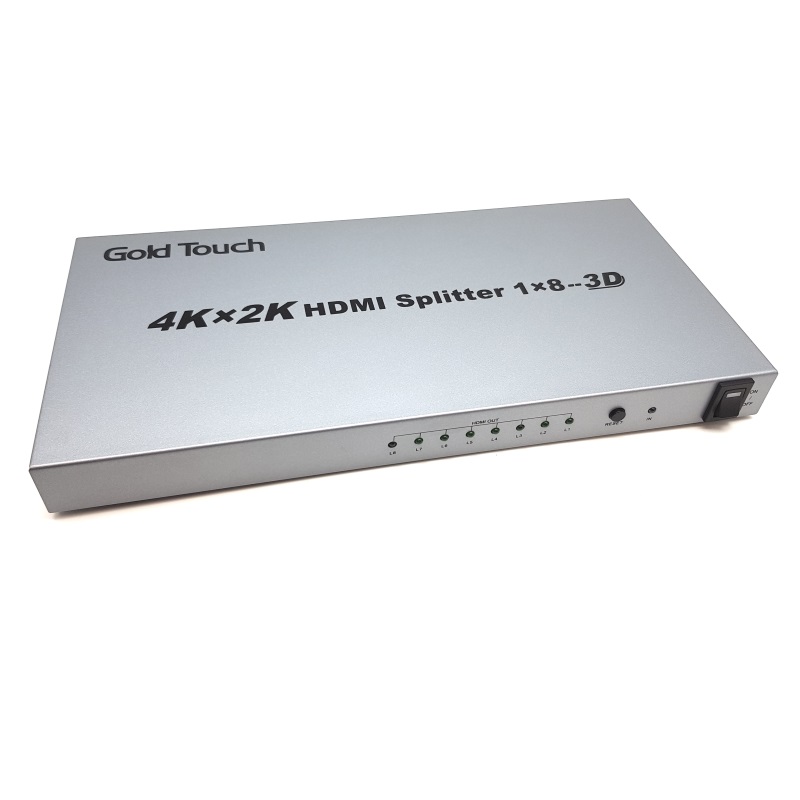

8 Ports 4K HDMI Splitter
This is an ultra high definition HDMI splitter supporting 3D and 4K*2K resolution. The ultra HD
signal can be easily allocated to multiple monitors that support Ultra HD signals.
The front and rear end of this product can connect to splitter, matrix and extender etc. And the
picture effect have no degradation and with good stability. When playing HD video without pause,
delay and trailing as well as perfectly supports 3D to make you enjoy three-dimensional picture.
It is widely used for video advertising, monitoring, information release, security system, multimedia
teaching system, bank, metro, computer room and long distance transmission management etc..
Feature：
- HDMI 1.4a input signal split to eight HDMI 1.4a sink devices
- Support Full HD, Full 3D
- Support 4K@30Hz
- Support CEC
- Support deep color 24bit,30bit, 36bit,48bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD (HBR)
- Support signal retiming
- Support input up to 15metres AWG26 HDMI standard cable length,
- output up to 25metres AWG26 cable length
- No loss of quality
- Installs in minutes
| Specification: |
|
| HDMI version |
HDMI 1.4a |
| HDMI resolution |
24/50/60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
| Support video color format |
24bit/deep color 30bit,36bit,48bit |
| Support audio format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) |
| Max bandwidth |
340MHz |
| Max baud rate |
10.2Gbps |
| Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal |
5Volts p-p (TTL) |
| Input cable distance |
15m AWG26 HDMI standard cable |
| Output cable distance |
≤25m AWG26 HDMI standard cable |
| Max working current |
2A |
| Power adapter format.. |
Input:AC (50Hz, 60Hz) :100V-240V; Output: DC12V/3A |
| Operating Temperature range |
(-15 to +55°C) |
| Operating Humidity range |
5 to 90%RH (No Condensation) |
